Our "FINE-PRINT" series of cylinder screen printing machines is specifically designed to meet the highest standards of precision and technology. These machines combine state-of-the-art technology with extensive expertise, creating a perfect symbiosis of innovation and experience.

The "FINE-PRINT" series stands for exceptional print quality, reliable performance, and maximum efficiency. Whether in industrial or artisanal applications, these machines set new standards for precise screen printing and guarantee outstanding results, even for the most demanding tasks.

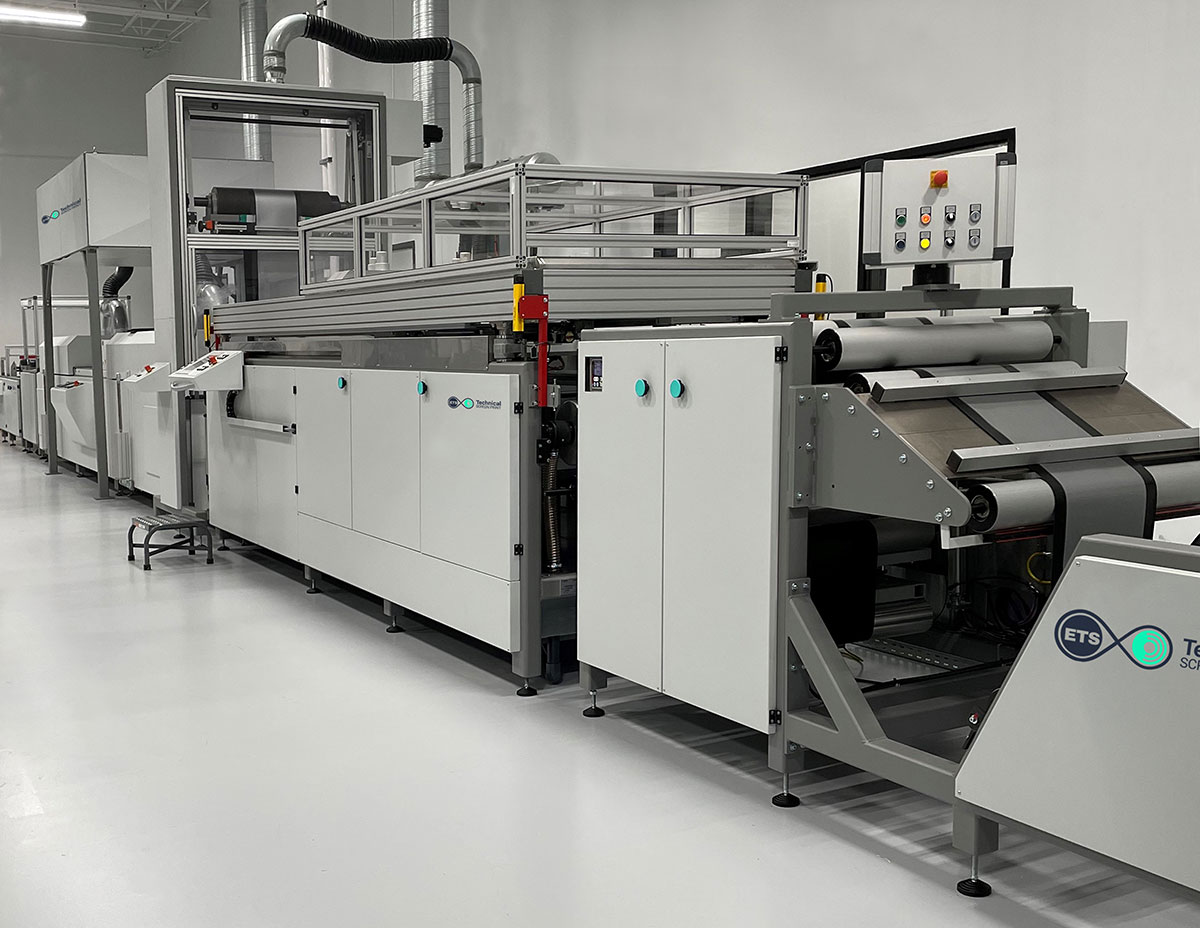

Detail description: ETS CYLINDER PRINTER FINE PRINT 750 / 1500

UNWINDER 750 / web guide system

• Material width 320mm up to 760mm
• Roll diameter max. 1000mm (extra floor clearance to load the roller)
• Ionizing system
• Core inside diameter Ø 6”
• Pneumatic - inflated unwind spindle 6”
• Spindle support with safety chucks
• Material sensor to detect the end of material and stop the printing line
• Splice table with pneumatic clamping bar, to hold the material in position for splicing
• Clamp bar 2 with holding mechanism, to hold the cleansing tissue
• Leading roller diameter Ø120mm and helically coiled
• Dancing roller system, with pneumatic servo cylinder both sides, to keep the web tension
• Electronic web guiding system for material track side to side +/- 0,1mm
• Unwind speed is control automatic by the cylinder printing head

CYLINDER PRINTER FINE PRINT 750 / 1500

• Material width 320mm up to 760mm
• Printing length up to 1500mm
• Vacuum material transport cylinder
• Servo single drive for each cylinder
• Vacuum electronic adjustable // storable
• Internal web tension control and adjustable // storable
• Advance control – Printing length compensation adjustable +/- 3mm // storable
• Electronic web guide system for material track side to side +/-0,1mm
• Web width adjustment with servo motor // position storable
• Ionizing system before the printing cylinder
• Pneumatic hole punch unit 5 x 5mm
• Squeegee and Flootbar unit with servo motor adjustment on the TDC of the printing cylinder
• Squeegee and Flootbar with RKS easy pneumatic look system
• Solvent exhaust above the printing area
• Material support roller between Printing cylinder and outfeed cylinder active driven

Horizontal THERMOS CONTACT DRYER

• Material width 320mm up to 760mm
• Vacuum conveyer belt
• Conveyer belt speed automatic adjustable from the loop control box up to 30 m/min.
• Vacuum heating plate, adjustable temperature up to 160C°
• Temperature control by PLC
• Thermos drying length 4m, with clearance room to install 1 UV curing system.
• Solvent exhaust on the out feed section
• Ionizing system

UV CURING SYSTEM BE-S-80/2/200

• Material width 320mm up to 760mm
• Two UV bulb a´200W/cm.
• Curing width max. 800mm
• Power adjustment 40% - 100% on each UV bulb
• Shutter system to cover the UV bulb in stand by
• PLC control
• Quartz glass for heat protection the material
• Selective filter for the bulb
• Exhaust fane
• Active liquid cooling plate with connection for Liquid circulation
• UV light protection cover

CONTROL STATION

• Material width 320mm up to 760mm
• Ionizing system Type IONTIS – E5000-080
• 1 Meter control table with lighting system button and above the material
• Possibility to do a human control both side Operator and non-Operator side
• Top light is a tube light system
• Button light is a full homogeny light system
• Solvent exhaust above the control area

REWINDER

• Material width 320mm up to 760mm
• Liquid cooling infeed roller diameter Ø 200mm with Liquid connection
• Pneumatic - inflated unwind spindle 6”
• Dancing roller system, with pneumatic servo cylinder both sides, to keep the web tension
• Electronic web guiding system for material track side to side +/- 0,1mm
• Ionizing system
• Rewinding spindle with adjustable winding tension, uniform during the whole rewinding process
